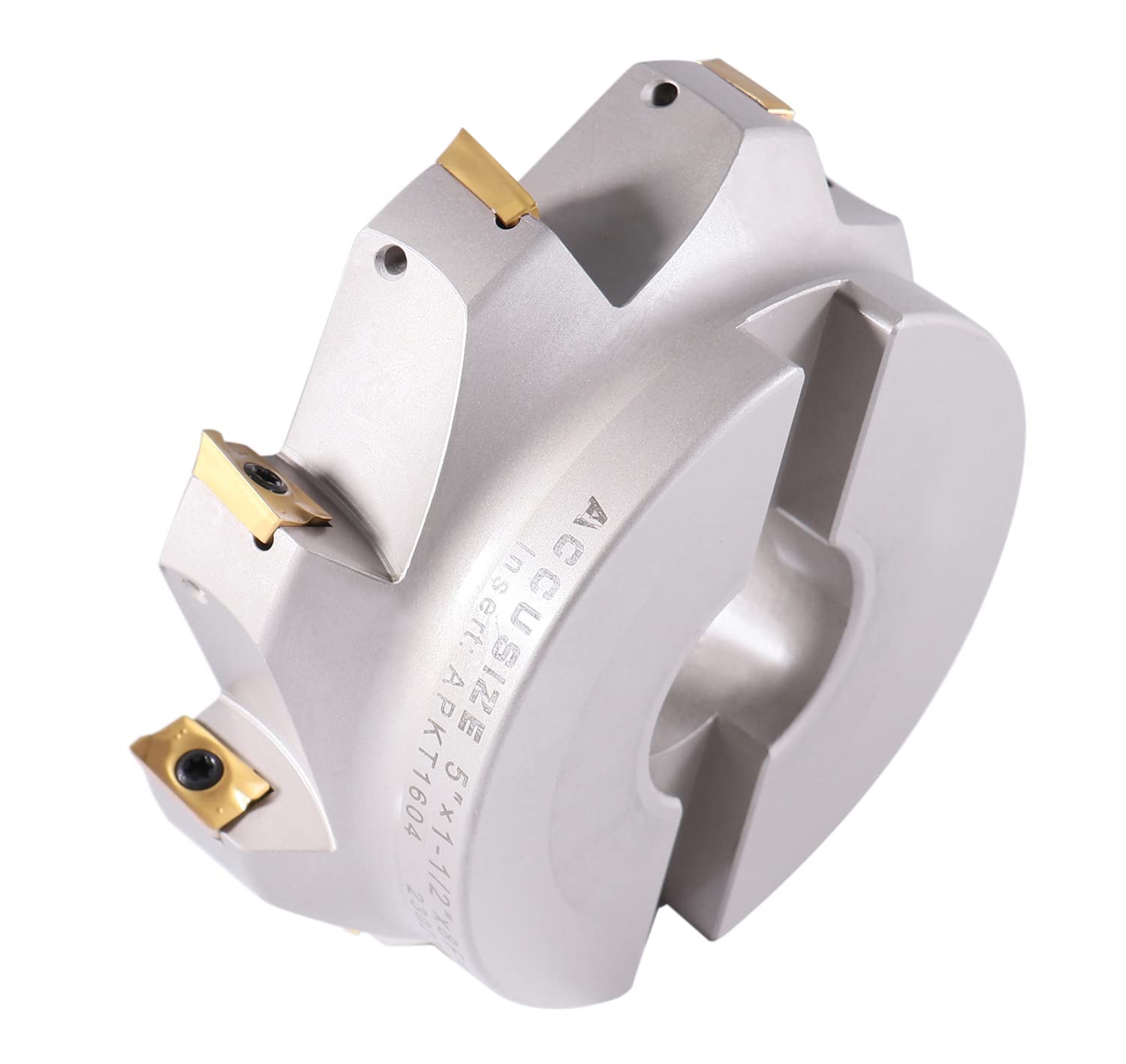

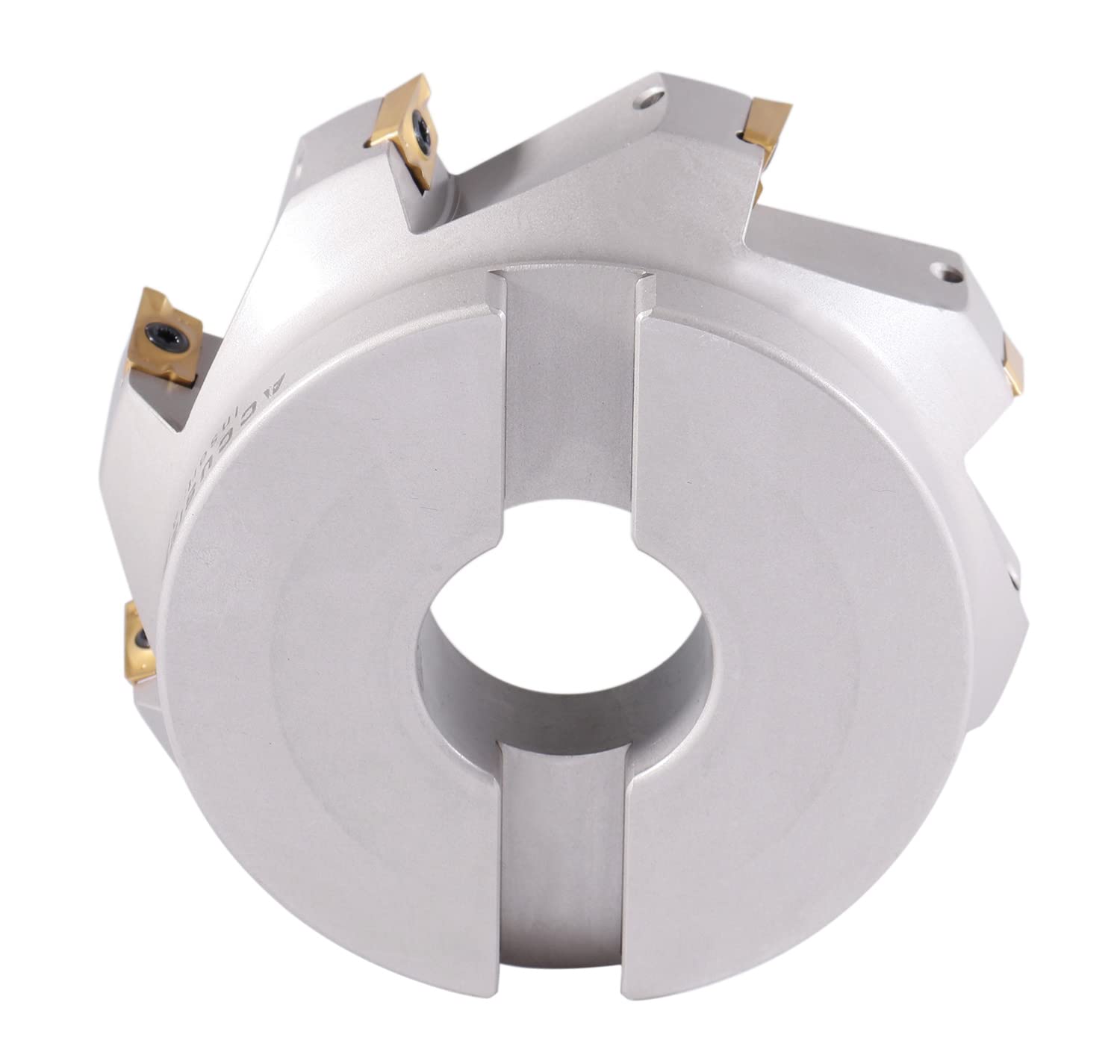

Accusize 5'' x 1-1/2'' 90 Degree Square Shoulder Indexable Face Mill with 8 APKT1604 Inserts - 4508-0022B - Perfect for CNC Milling, Metalworking & Industrial Machining Applications
Free shipping on all orders over $50
7-15 days international
18 people viewing this product right now!
30-day free returns
Secure checkout
95765582
Description
90° cutting angle Screw down inserts Radial rake angle: -10° Axial rake angle: +7° All types of square shoulder face milling, side milling and full slot milling (shaft end mills) of steels, alloyed steels, stainless and heat resistant steels, case irons and aluminum alloys. Fitted with 10° positive rectangular inserts, allows high depth of cut and feed per tooth Uses APKT / APHW / APKR_APHT / APMT insert (sold separately) Cutting Diameter: 5" Arbor Hole d: 1-1/2" Overall Length: 2.00" ap: 0.551: No. of Inserts: 8 Screw: M4 x 8Inserts: APKT1604 5" x 1-1/2" 90 Deg. Square Shoulder Indexable Face Mill APKT1604 Insert Specification Cutting Diameter: 5" Cutting Diameter: 5" Arbor Hole d: 1-1/2" Overall Length: 2.00" ap: 0.551: No. of Inserts: 8 Screw: M4 x 8.4 Inserts: APKT1604 Screw Driver Included 90° Cutting angle Screw down insert Radial rake angle: -10° Axial rake angle: +7° 8-Flute No of Insert: 8 Screw: M4 x 8 Insert: APKT1604 Carbide Inserts APKT1604 TiN Coated TiN Coated APKT1604 Carbide Carbide Inserts APKT1604 Specifications TiN Coated APKT1604 Carbide Replacements APKT1604 Inserts 10 Pcs/Box Carbide Inserts APKT1604 TiN Coated Part Number: 0056-1604x10 APKT 160408 Inserts 10 Pcs/Box APKT 160408 LH Carbide Insert, K10 Aluminum Cutting Part Number: 0058-1604x10 APMT1604PDER-H2 10 PCS/BOX CARBIDE INSERTS APMT1604PDER-H2 Cutting Stainless Steel PVD COATED Part Number: 1056-1604 M4 x 8 Screws M4 x 8 Replacement Screws for Indexable Face Mill & End Mills 10 pc/box Part Number: 0046-0911
Features
5" Cutting Diamater 90 Deg Square Shoulder Indexable Face Mill with 8pcs APKT1604 Carbide Inserts
1-1/2" Arbor Hole, 2.00" Overall Length,
90° cutting angle; Screw down insert; Radial rake angle -10°; AP 0.551"; Use M4 x 8 Insert Screws; Nickel Plated Body.
Fitted with 10° positive rectangular inserts and allows a high depth of cut and feed per tooth
Come with APKT1604 Inserts installed for cutting Steel; Also compatible with APHW / APKR_APHT / APMT inserts (sold separately)
Wide Coverage Milling 5" cutting diameter for broad surface milling, perfect for square shoulder and side milling applications.
Robust Insert Compatibility Comes with 8 pre-installed APKT1604 inserts, offering immediate high-quality milling performance.
Versatile Material Capability Engineered for machining a range of materials, including steels, alloys, cast irons, and aluminum alloys.
Precision Cutting Features 90° cutting angle and -10° radial rake angle designed for efficient cutting and optimal chip removal.
Enhanced Cutting Capacity 1-1/2" arbor hole and a 2.00" overall length, suitable for deep cuts and high feed rates with minimal vibration.
