Heavy Duty Utility Trailer Axle - 3,500 lbs Capacity, 88" Hub Face, 72" Spring Seat - Perfect for Hauling Equipment, ATVs & Farm Use
Free shipping on all orders over $50
7-15 days international
8 people viewing this product right now!
30-day free returns
Secure checkout
90425839
Description

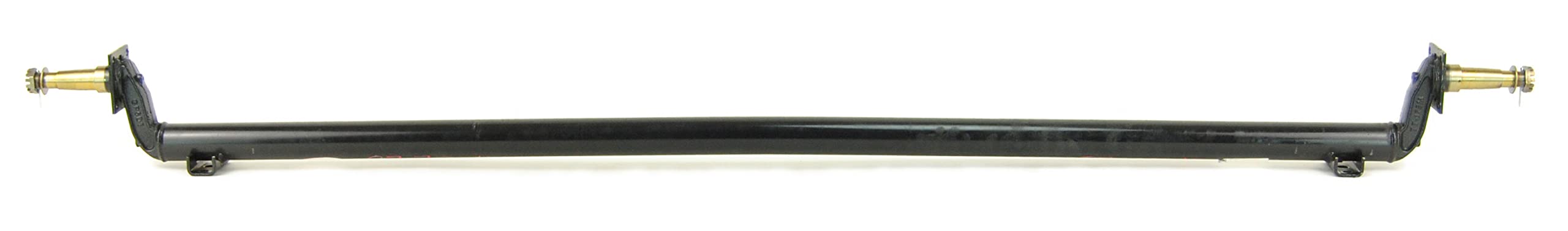

Suitable for freshwater boat trailers and ideal for utility or landscaping trailers, this axle has a 3,500lb capacity and is made with 3/16 inch steel wall thickness, measures 2 3/8 inch in diameter and features #84 Spindles welded into a 4 inch drop beam. Comes with spring seats welded at 72 inches.
Features
Hub Face measures 88 inches - Hub Face measures from the face of one hub to the face of the other hub (the face is where the wheel meets the hub).
Overall length measures 93 inches tip to tip.
Spring seats welded at 72 inches - Spring Center is measured from the center of one spring to the center of the other, across the axle.
Features the EZ-Lube system.
Comes with spring seats welded, just mount your axle with the appropriate U-bolt kit - No more drilling!
2 3/8 inch diameter Heavy Duty 3/16 inch thick tubing.
Uses inner bearing # 68149 - 1 3/8 inch inner diameter.
Uses outer bearing # 44649 - 1 1/16 inch inner diameter.
Grease Seal - 1.719 inch inner diameter.
Comes with castle nut and cotter key.
