Heavy Duty Hydraulic Top Link Cat 1-1 with Locking Block | 16 1/8"-22 7/16" Double-Acting Hydraulic Cylinder | 2 x Hose Included | for Tractors, Excavators & Farm Equipment | Perfect for Construction, Agriculture & Material Handling Operations
Free shipping on all orders over $50
7-15 days international
11 people viewing this product right now!
30-day free returns
Secure checkout
65955698
Description

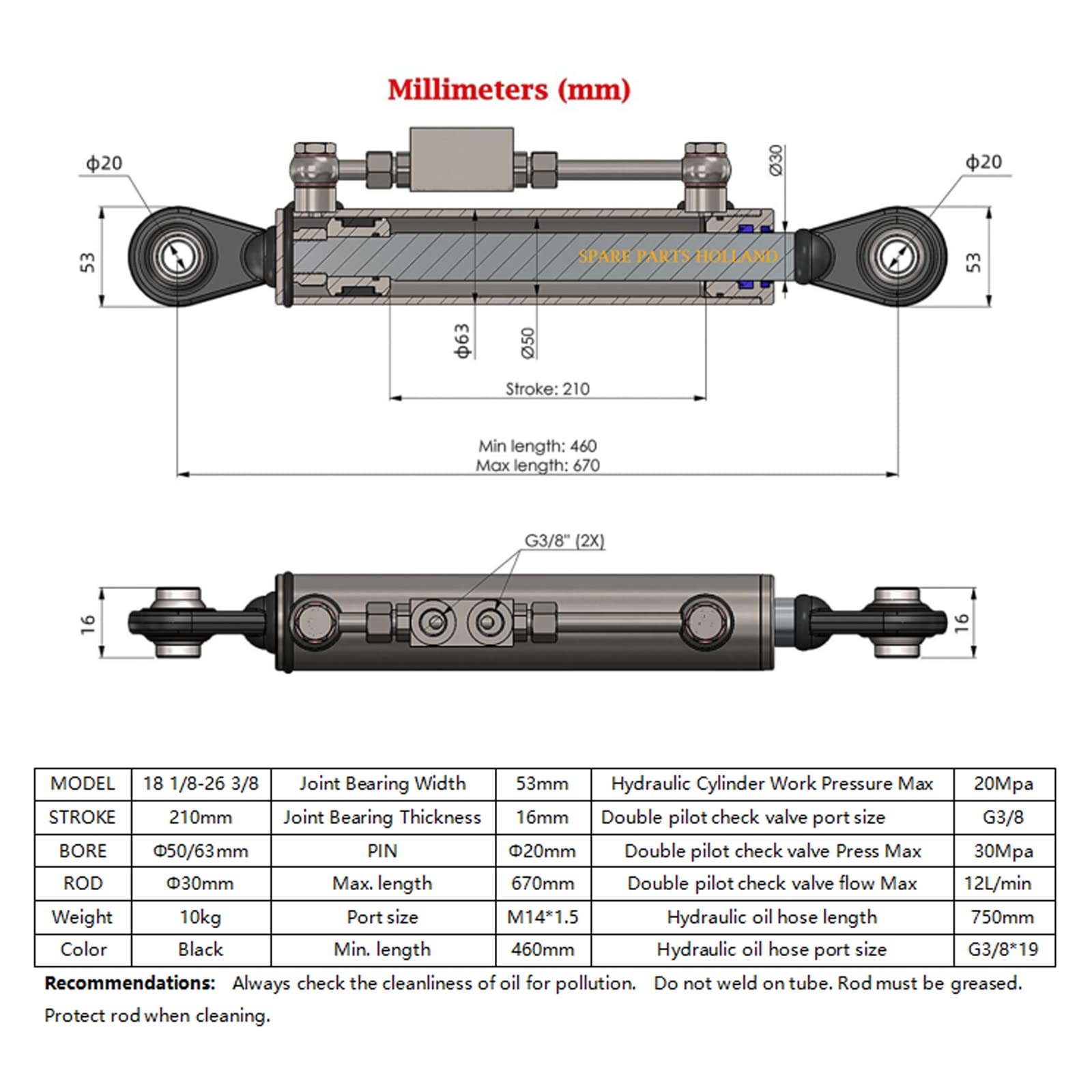

Description This double-acting hydraulic cylinder converts the input hydraulic pressure energy into the mechanical energy of the piston's linear motion, thus providing strong pull and thrust for all types of mobile equipment. Its compact shape provides stable performance in compact devices. Through the welding and polishing process, the fixation is more durable.Hydraulic Lock Check Valve: The hydraulic lock check valve can lock the circuit and prevent the circuit oil from flowing, so as to ensure that the cylinder can still keep its position even if there is a certain load outside, which makes the operation process more smooth, safe, and reliable.Practical Hose: The hose is made of rubber and steel wire, which has good toughness.It comes with G3/8 * 19 connectorSpecificationsMaterial: SteelColor: BlackProcess: Polishing and WeldingSurface Treatment: PaintingPull Force: 2.3t/5070lbsThrust Force: 3.5t/7716lbsModel: 16 1/8-22 7/16''Stroke: 16cm/6.29inBore Diameter: 5/6.3cm(1.96/2.48in)Rod Diameter: 3cm/1.18inColor: BlackJoint Bearing Width: 5.3cm/2.08inJoint Bearing Thickness: 1.6cm/0.62inPin Diameter: 2cm/0.78inMax. Length: 57cm/22.44inMin. Length: 41cm/16inPort Size: M14*1.5Hydraulic Cylinder Work Pressure Max: 20MpaDouble Pilot Check Valve Port Size: G3/8Double Pilot Check Valve Press Max: 30MpaDouble Pilot Check Valve Flow Max: 12L/minHydraulic Oil Hose Length: 75cm/29.52inHydraulic Oil Hose Port Size: G3/8*19Packing Size: 47*10*10cm/18.5*3.94*3.94inGross Weight: 8.5kg/18.89lbsPackage Included1* Double-acting Hydraulic Cylinder2* Hoses2* Banjo Bolts4* Sealing Rings1* Wrench1* Bracket
Features
【Strong Hydraulic Power】The double-acting hydraulic cylinder can exert linear motion and force through the hydraulic system(maximum working pressure of 20Mpa), without the need for mechanical gear or lever to generate 5070lbs pull force and 7716lbs thrust force. So, it can achieve maximum performance even under heavy loads.

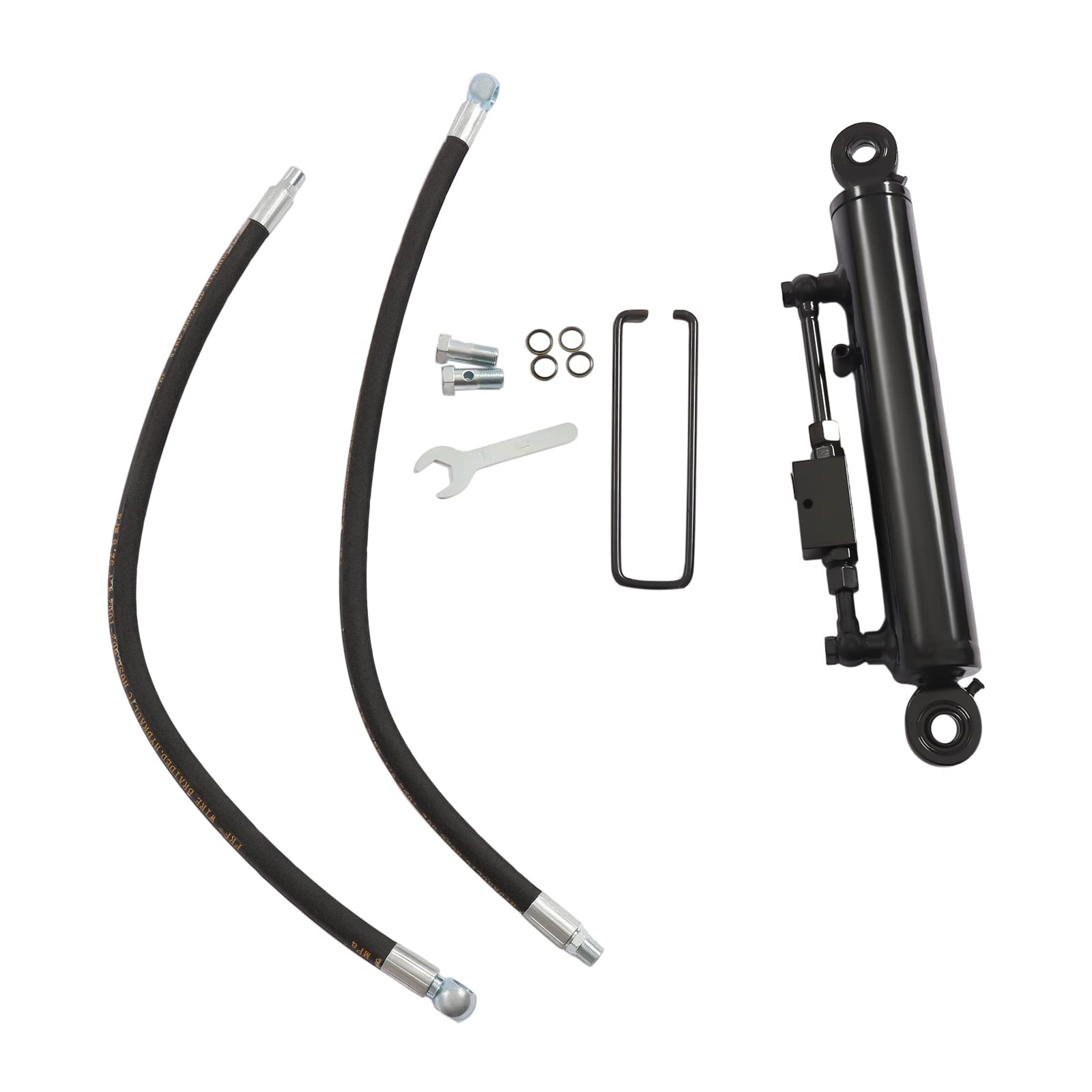

【Complete Accessories】In addition to the double-acting hydraulic cylinder, the package is also equipped with hoses, banjo bolts, sealing rings, and a wrench, making it convenient for your use and installation without additional configuration and purchase.
【Excellent Performance】Its high-strength steel piston, precision threaded gland with wear ring, polished hard chrome plated rod, and high tensile welded steel base ends enable our hydraulic cylinder to be suitable for various heavy applications and can withstand exxtreme weather.
【Two-Way Design】It is equipped with a two-way check valve, which can complete retraction and extension. The valve allows free flow in one direction, and the pressure drop is relatively small. In the opposite direction, it is usually closed, and the valve can be opened only when there is pilot pressure from another oil circuit.
【Application】It can be directly mounted on tractors, excavators and Class 1 and 2 equipment and is widely used in construction, transportation, agriculture, material treatment and other industries.
