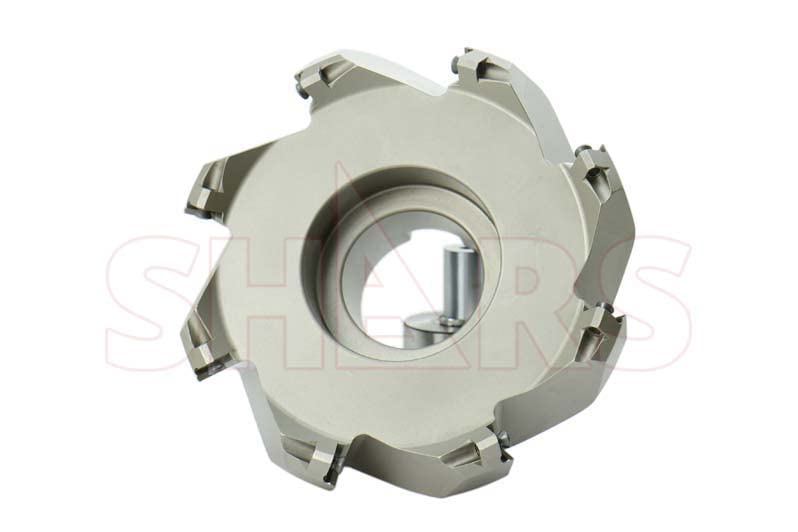

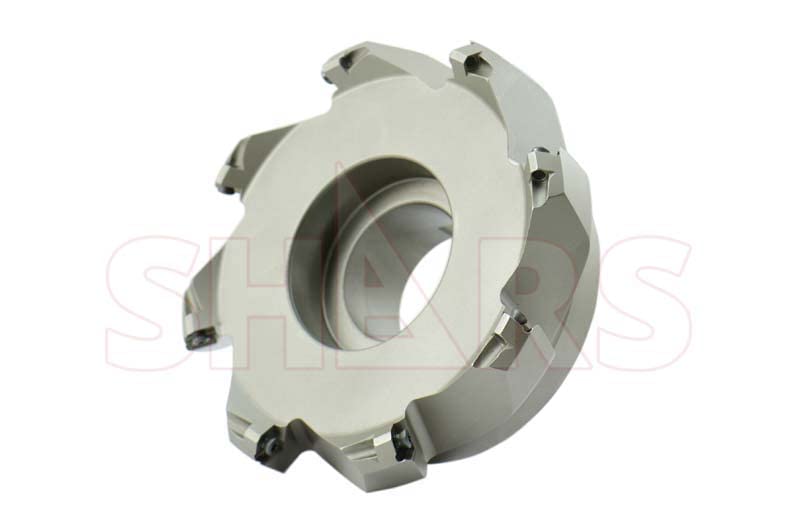

Shars CNC 6" 45° Indexable Face Mill with SEHT 43 Inserts - 8 Flute Carbide End Mill Tool 404-2342W R (Includes Certificate) - Perfect for Metal Milling, Machining Aluminum & Steel Workpieces

$116.02 $210.95 -45% OFF

Free shipping on all orders over $50

7-15 days international

23 people viewing this product right now!

30-day free returns

Secure checkout

54877032

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

Description

Benefit from the 45 degree lead angle allows an increase of feedrate by 50% over 90 degree face mill and also allows this face mill to used on smaller horse power mills. It uses industry standard SEHT / SEHW / SEHX 43 (ISO 1204) insert which has a positive 20 degree clearance angle. The insert pockets are designed to be 19 degree positive inclined to minimize vibration and each pocket has an chip escaping pathway to help preventing chip built-up on insert edge.

Features

    Cutting Diameter 6

    Maximum Cutting Diameter 6.420

    Axial Depth of Cut AP 0.236

    Overall Height 2

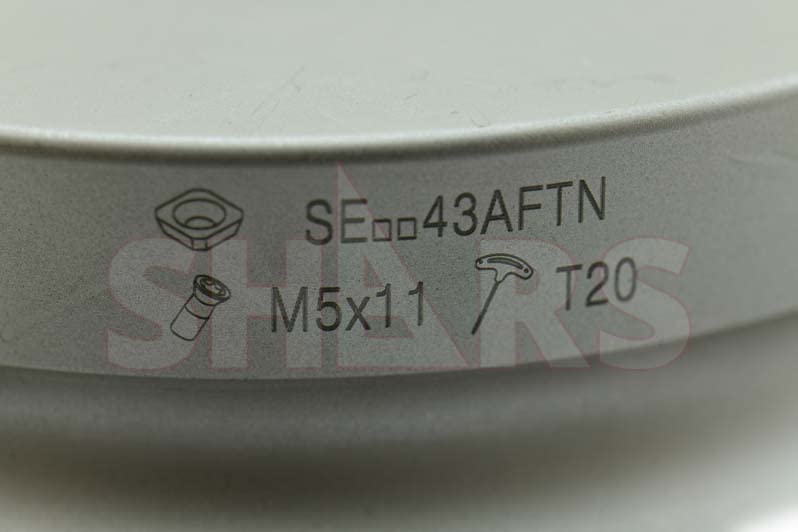

    Insert Style SEHT, SEHW, SEKT

    Insert Size 1204

    8 Flutes

    Cutting Angle 45

    Arbor Hole Diameter 2

    Not Coolant Throught
