JUS24-TZ G185 Triple Zinc Galvanized Face Mount Joist Hanger for 2x4 Lumber - Heavy-Duty Construction Bracket for Deck, Fence & Framing Projects
Free shipping on all orders over $50
7-15 days international
15 people viewing this product right now!
30-day free returns
Secure checkout
27798838
Description
From the Manufacturer Joist hangers are designed to connect joists to headers in a variety of framing applications. 2x4 hangers will work with 2x4 inch lumber. Use all specified fasteners. Joist nails must be driven at a 30 degree to 45 degree angle through the joist or truss into the header to achieve listed loads. Standard length “double shear” nails must be used to achieve listed load values. 16d sinkers (9 gauge x 31⁄4˝) may be used where 10d commons are specified with no load reduction. Codes: ESR-1881, FL9835, FL570, FL821, Dade County, FL 07-0419.01, Dade County, FL 07-0214.20 & Dade County, FL 06-0921.05. Fastener Schedule: Header - (4) 10d Nails, Joist (2) 10d Nails. Allowable Loads (lbs.)(DF-L/SP): Floor (100%) - 655; Roof (115%) - 750, (125%) - 820; Uplift (160%) - 510. Code Ref.: 6, F6, F15, D3.
Features

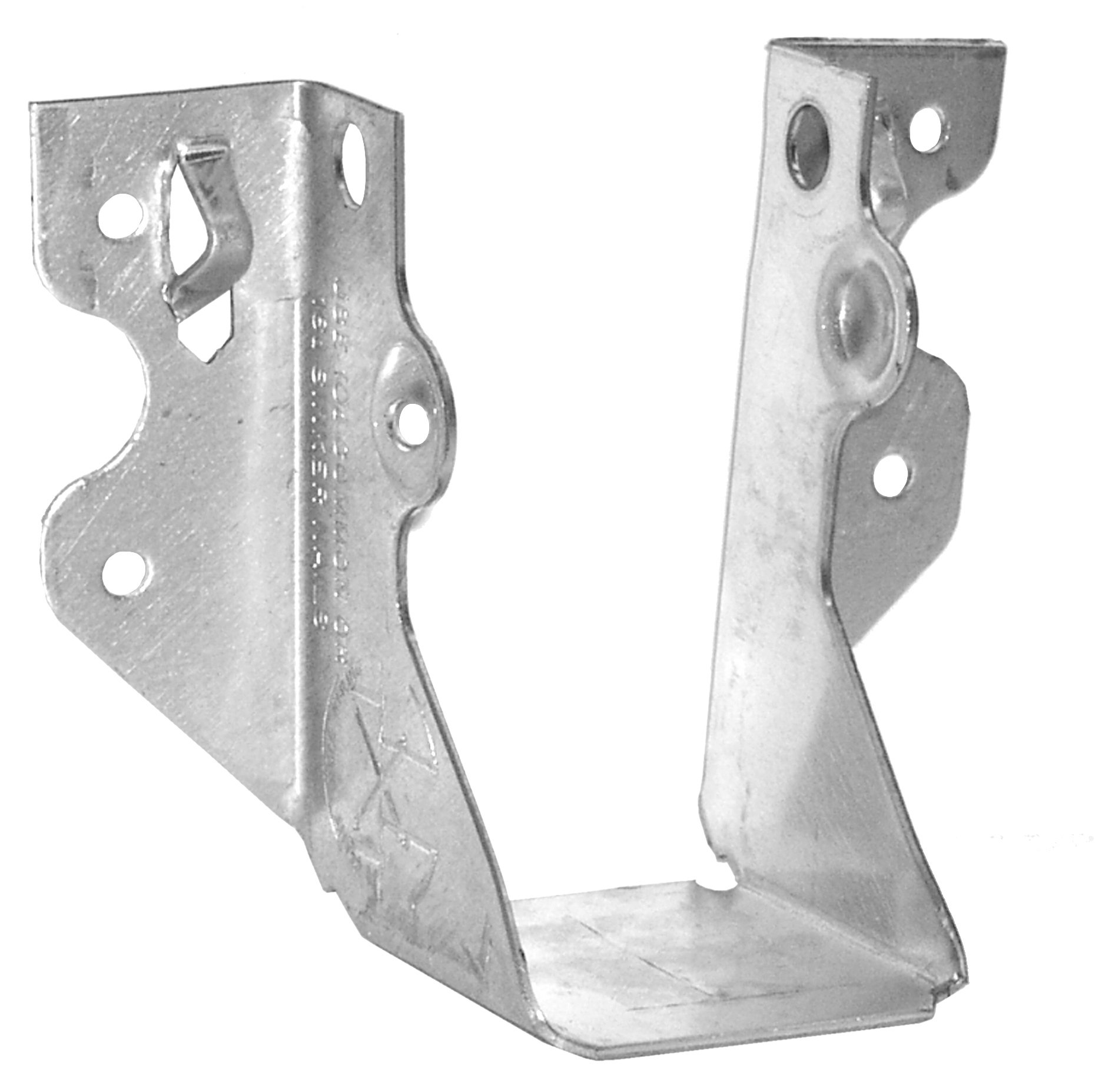

Light duty face mount hanger that connects a 2X4 joist to a wood header
Heavy G185 galvanized coating for exterior applications
Recommended for use with treated lumber
Slant nailing allows high loads with fewer fasteners and eliminates the need for special nails
Comparable to LUS24Z
