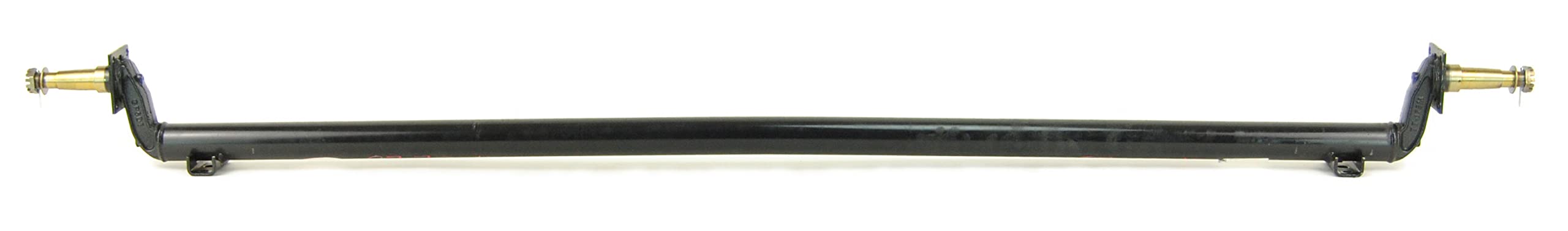

Sturdy 3,500lb Capacity Drop Axle Trailer - 85in Hub Face & 70in Spring Seat - Painted Steel Black | Perfect for Boat Trailers, Utility Trailers & Heavy-Duty Hauling
Free shipping on all orders over $50
7-15 days international
17 people viewing this product right now!
30-day free returns
Secure checkout
26530478
Description
Suitable for freshwater boat trailers and ideal for utility or landscaping trailers, this axle has a 3,500lb capacity and is made with 3/16 inch steel wall thickness, measures 2 3/8 inch in diameter and features #84 Spindles welded into a 4 inch drop beam. Comes with spring seats welded at 70 inches.
Features
Hub Face measures 85 inches - Hub Face measures from the face of one hub to the face of the other hub (the face is where the wheel meets the hub).
Overall length measures 90 inches tip to tip.
Spring seats welded at 70 inches - Spring Center is measured from the center of one spring to the center of the other, across the axle.
Features the EZ-Lube system.
Comes with spring seats welded, just mount your axle with the appropriate U-bolt kit - No more drilling!
2 3/8 inch diameter Heavy Duty 3/16 inch thick tubing.
Uses inner bearing # 68149 - 1 3/8 inch inner diameter.
Uses outer bearing # 44649 - 1 1/16 inch inner diameter.
Grease Seal - 1.719 inch inner diameter.
Comes with castle nut and cotter key.
