15194585

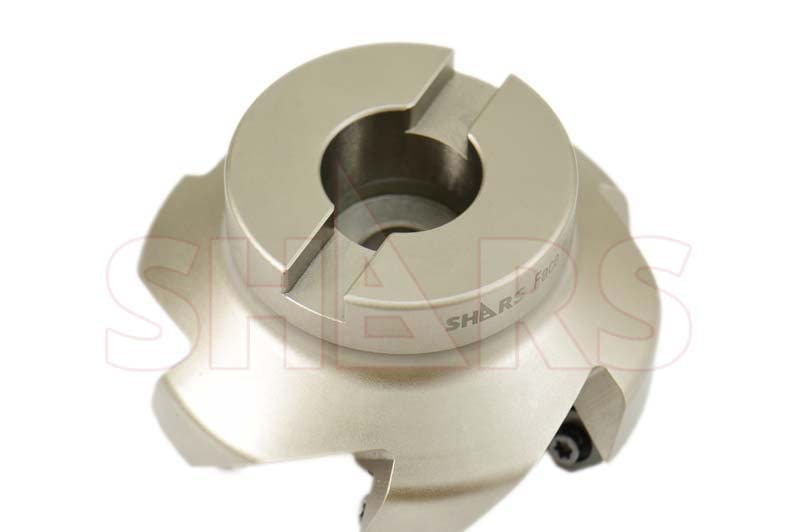

DESIGNED TO CUT ALUMINUM: Benefit from the 45 degree lead angle allows an increase of feedrate by 50% over 90 degree face mill, and it also allows this face mill to used on smaller horse power mills. It uses industry standard SEET12T3 insert which has a positive 20 degree clearance angle. The insert pockets are designed to be 19 degree positive inclined to minimize vibration and each pocket has an chip escaping pathway to help preventing chip built-up on insert edge.
Indexable Milling Category Face & Shoulder Mill
Cutting Diameter 3
Maximum Cutting Diameter 3.510
Axial Depth of Cut AP 0.236
Overall Height 2
Insert Style SEET
Insert Size 12T3
Number of Flutes 6
Cutting Angle 45
Arbor Hole Diameter 1
