R8 FMB40 7/16-20 Shank Face End Mill Arbor | 6.3" (160mm) Cutting Diameter 8 Flute 400R CNC Milling Shell Cutter | Includes 20Pcs APMT1604 Carbide Inserts & T15 Wrench | Ideal for Metalworking, CNC Machining, and Industrial Milling Applications
Free shipping on all orders over $50
7-15 days international
27 people viewing this product right now!
30-day free returns
Secure checkout
15030826
Description
Specification:Used for plate cutting, Hardenless insert used for steel meterial.Body made of high quality steel, durableCarbide InsertMaterial: cemented carbideModel: APMT1604Face Mill ArborModel: R8-FMB40Bore Diameter: 1.58In/40mmDraw Bar Threads: 7/16-20Milling CutterModel: 400R-160-40-8TFlutes: 8-FluteCutting Diameter: 6.3in/160mmFeatures:90° indexable milling cutter, matching with standard APMT1604 insertMade of steel with high hardness and strength to ensure long service lifeHigh vibration-absorbing performance, improve the surface finish of the workpieceSet including R8 face mill arbor with 40mm bore for holding milling cutterSet including 20pcs APMT1604 inserts, great for shoulder milling, face milling and slotting, can fit a variety of materialsPackage included:1 x R8 FMB40 Arbor1 x BAP400R 160-40-8T1 x T15 Wrench20 x APMT1604 Carbide Inserts as pictured
Features

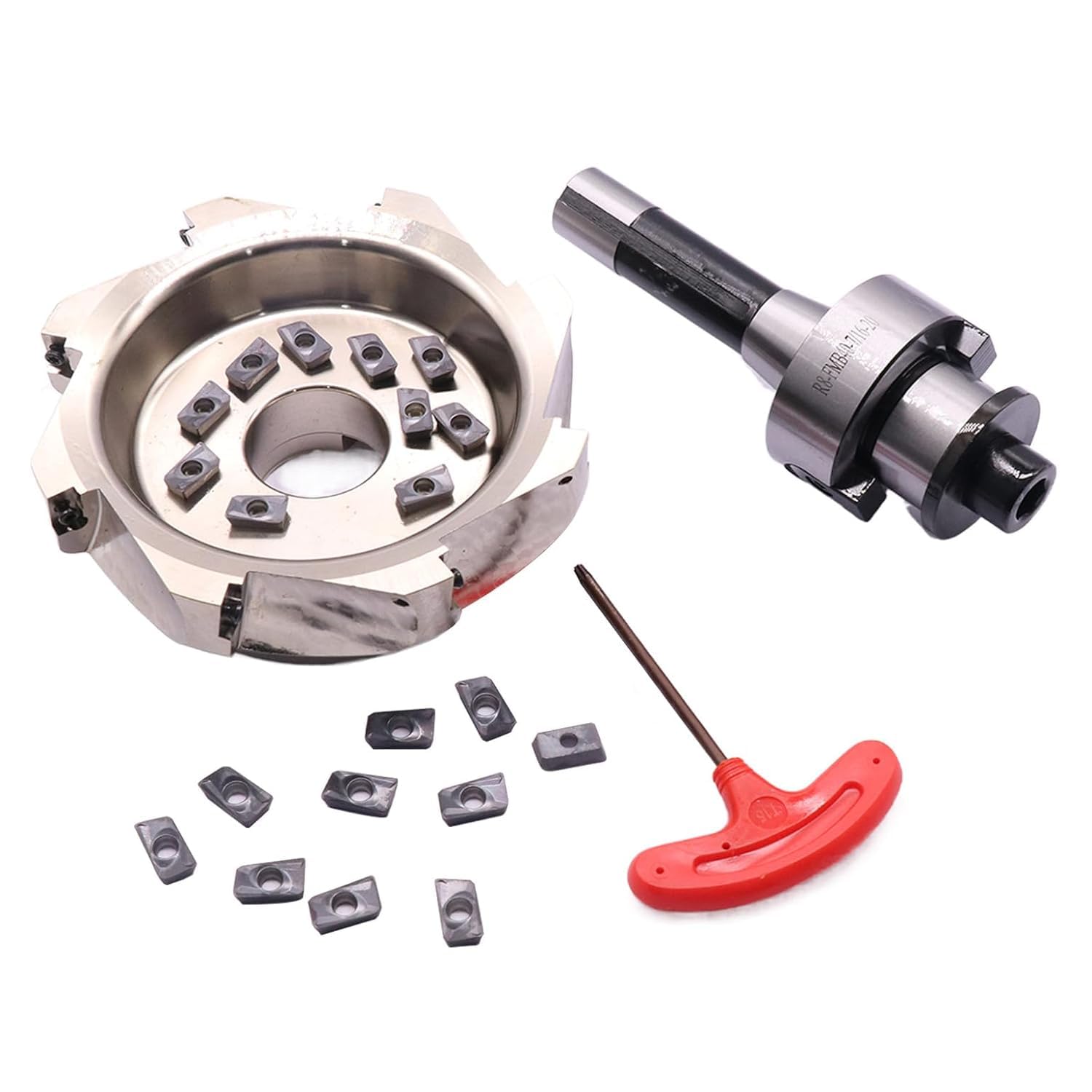

Set includes 1 x R8 FMB40 Arbor, 1 x 400R-160-40-8T Cutter, 1 x T15 Wrench, 10 x APMT1604 Carbide Inserts as pictured.
R8 FMB40 Arbor 7/16-20 Draw Bar Threads, 40mm/1.57In Bore Diameter.
400R-160-40-8T Face End Mill Cutter 6.3in/160mm Cutting Diameter, 8 Flutes, /1.57In/40mm Bore Diameter.
APMT1604 Carbide Insert 85°Nose Angle Parallelogram, 11°Relief Angle.
Function Machining planes, grooves, and cutting off workpieces on milling machines. Milling speed and processing efficiency are high, and the surface quality of the processing is also good. It is possible to add T parts with hard skin and hardened layers, which has obvious advantages in improving product quality and processing efficiency.
High Quality Made of fine quality steel, good permeability,sturdiness and durability, resistance to multiple impacts,fine durability. Smooth surface, comfortable feeling, nice appearance.
Good Performance Milling rotary tool is screw locking, the chip large space, good chip removal, edge can fit a variety of materials.
Widely Application This shank face mill arbor set is designed for shoulder milling, face milling and slotting, mainly used for CNC machining centers, CNC engraving machines. It can also be installed on an ordinary milling machine to process some harder and less complex heat-treated materials.
