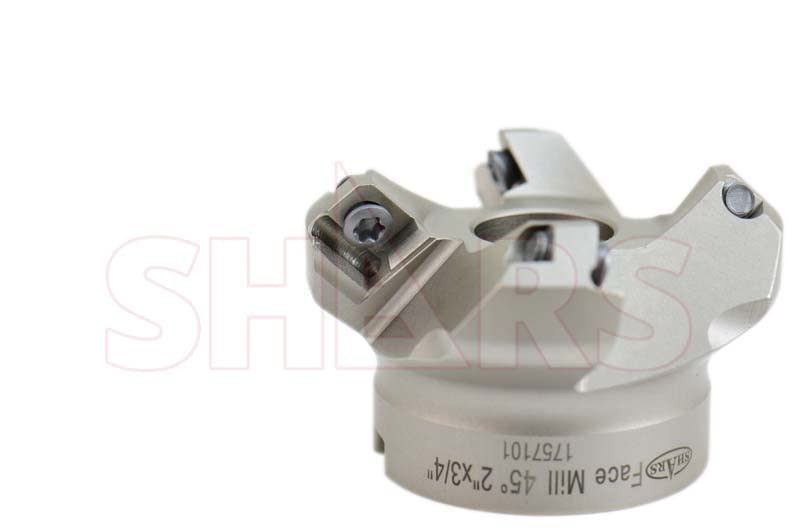

Shars 2" 45 Degree Indexable Face Mill with SEHT 1204 Inserts (404-2245W) - Perfect for Milling Steel, Stainless Steel & Cast Iron | Ideal for CNC Machining & Metalworking Projects

Shars Tool 2" 45 degree Face Mill SEHT Insert Benefit from the 45-degree lead angle allows an increase of feed rate by 50% over the 90-degree face mill and also allows this face mill to be used on smaller horsepower mills. It uses industry-standard SEHT / SEHW / SEHX 43 (ISO 1204) insert which has a positive 20-degree clearance angle. The insert pockets are designed to be 19 degrees positively inclined to minimize vibration and each pocket has a chip escaping pathway to help prevent chip built-up on the insert edge. Features Cutting Diameter D: 2"Arbor Hole Diameter: 3/4"Height H: 1.570"Maximum Cutting Diameter: 2.460"Axial Depth of Cut ap: 0.236"Overall Height: 1.57"Insert Style: SEHT, SEHW, SEKTInsert Size: 1204Coolant Through: No Product Inculed Insert screw, wrenchInserts NOT included, Sold Separately Product Spotlight Each insert pocket is designed to reduce run-out and extent insert life.Use SEKT / SEHT / SEHW 43 1204 insert (sold separately)Setting Angle: 45 degreeRadial rake angle: -7 degreeAxial rake angle: 19 degree Easy reference guide for insert number, screw, and other accessories is printed on the tool shank Suitable for most face-milling applicationsReduces vibration on long overhang applicationsChip thinning effect allows for increased table feedsHigh Positive cutting geometry Optional Replacement Insert SEHT 43 1204 AFTN YBG205 Carbide Insert 5 PCS Set Brand: ZCC USAApplications: Semi-FinishedTo Be Used On: For Alloy Steel, Cast Iron, Hardened Steel, Stainless SteelANSI Number: SEHT 43 AFTN; ISO Number: SEHT1204AFTNInsert Style: SHET; Insert Size 1204Inscribed Circle: 1/2"; Thickness: 3/16"; Through Hole: 0.217"Material: Carbide; Coating: PVD Nc-TiAlN Cutting Parameter We also offer other face mills and tool holders Tegara CAT40 3/4" Arbor Dia. Shell Face Mill Tool Holder, 1-3/8" Projection L. Tegara HSK63A 3/4 x 4" Shell Face Mill Tool Holder Shars 2" 90 Degree Indexable Face Mill with 5 PCS APKT1604 Carbide Insert Shars 2 Round Indexable Face Mill RPMT Insert Shars 2" 90 Degree Indexable Face Mill with 5 PCS APKT1604 Carbide Insert ZCC USA 5 PCS SEHT 43 1204 AFTN YBG205 Carbide Insert for Alloy Stainless Steel Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 7 — 3.5 out of 5 stars 4 — — 5.0 out of 5 stars 1 Price $72.20$72.20 $251.95$251.95 $70.95$70.95 $69.95$69.95 $100.95$100.95 $49.50$49.50 Order No. 202-5371 202-6501 404-6976 404-1918W 404-1867W+404-6541(5) 424-1502(5)
